Tube Screw Conveyor for Cement, Powder Auger Conveyor Machine
Closed Continuous Conveying
It is a professional closed continuous conveying equipment, specially designed for transporting powder, granular and small block materials.
Multi-angle Conveying
Relies on rotating spiral blades to push materials along the inner wall of the shell, supporting horizontal, inclined and vertical multi-angle conveying.
Fully Sealed Structure
Adopts a fully sealed structure to isolate materials from the external environment, with no dust leakage.
Compact DesignThe whole machine has a compact structure, occupying small floor space and easy to install.
Variable Frequency Speed Regulation
Equipped with variable frequency speed regulation function, which can flexibly adjust the conveying capacity according to actual needs.
- Overview
- Specifications and Parameters
- Application Scenarios
- FAQ
- Recommended Products
Product Overview

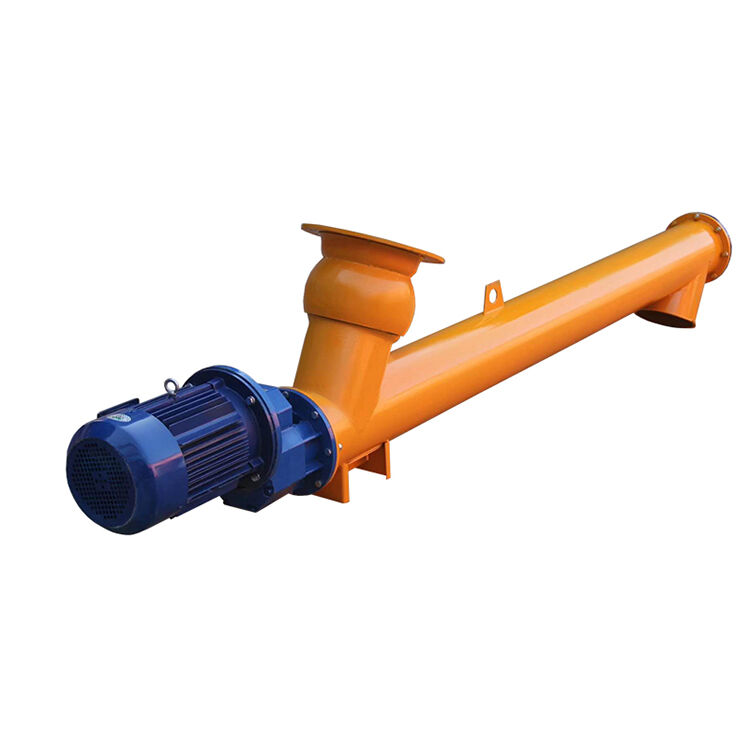

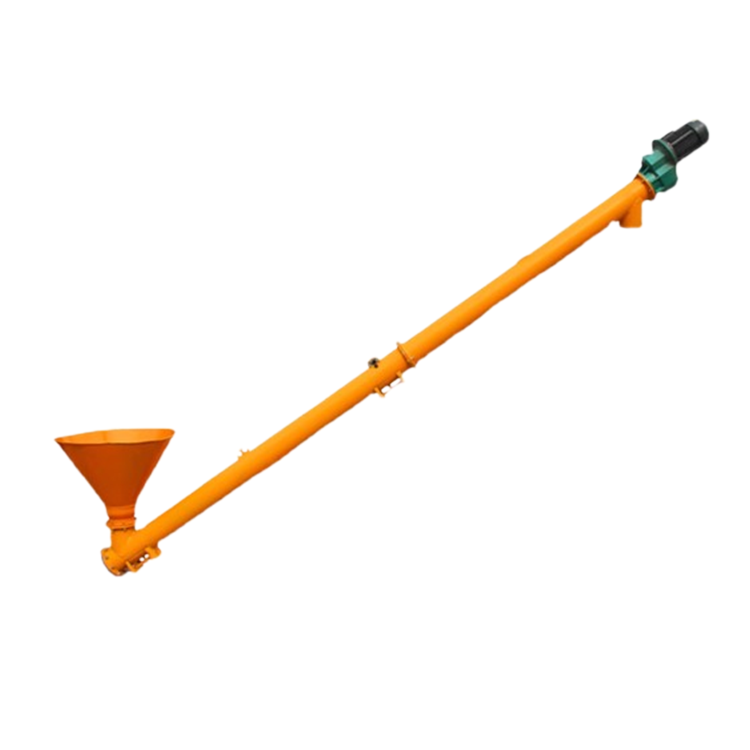

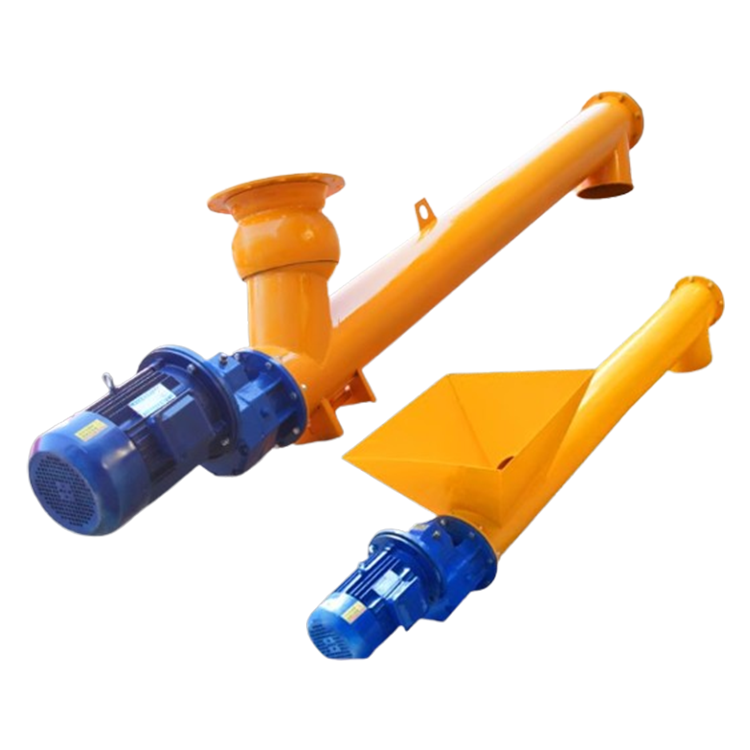

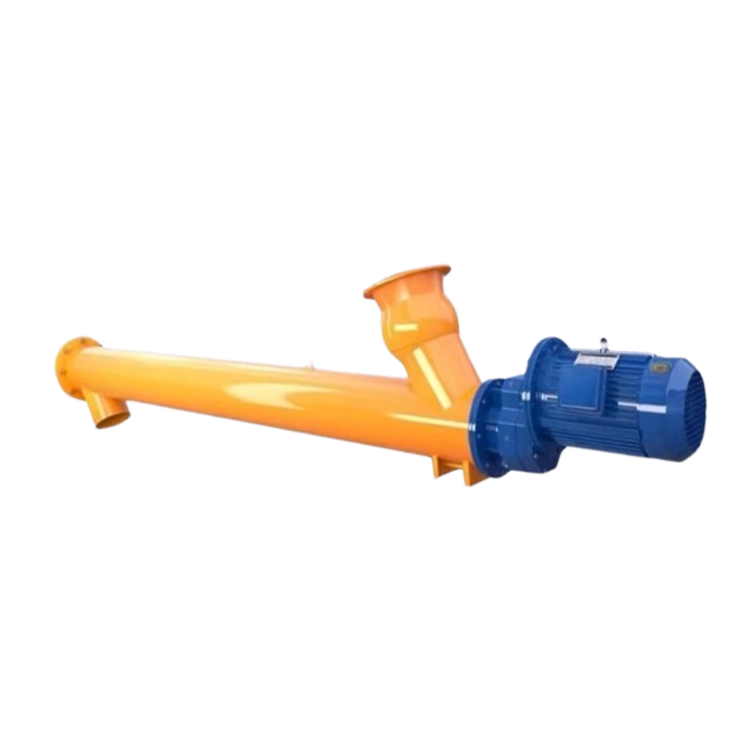

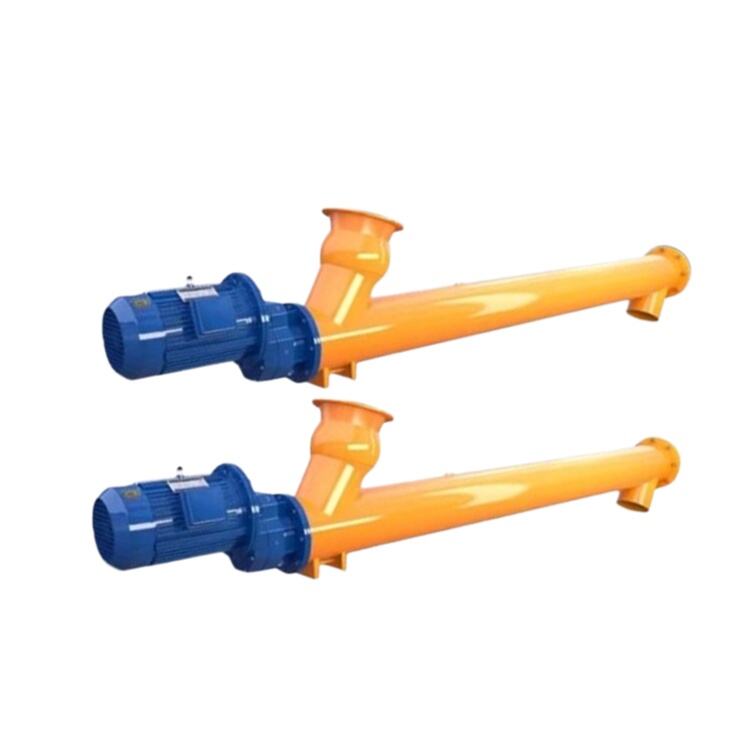

Screw conveyor is a professional closed continuous conveying equipment, mainly used for transporting powder, granular and small block materials. It relies on the rotating spiral blades to push materials along the inner wall of the shell, realizing horizontal, inclined and vertical multi-angle conveying, which is flexible and adaptable to various installation environments.
With a fully sealed structure, it effectively prevents dust leakage, meets environmental protection production requirements, and avoids material pollution. The whole machine has a compact design, small floor space, stable operation, low noise and low failure rate, which greatly reduces later maintenance costs.
Equipped with variable frequency speed regulation function, the conveying capacity can be flexibly adjusted according to production needs. It can be seamlessly linked with automatic control systems to realize automatic feeding and batching, saving labor and improving production efficiency. The equipment is easy to install, with a long service life and strong practicality, suitable for various closed conveying scenarios.
Specifications and Parameters
| Item | Details |
| Model | YZX219 / YZX273 / YZX325 |
| Conveying capacity | 25‑75t/h |
| Speed | 288 rpm (1440/5) |
| Motor speed | 144‑288 rpm |
| Motor type | 4‑pole motor |
| Frequency | 50Hz |
| Brand Name | YUZHIXIN |
| Place of Origin | Henan，China |
| Certification | CE ISO |
Application Scenarios
Concrete Batching & Sand Aggregate Industry
Used for conveying bulk materials such as cement, fly ash, stone powder and mineral slag in concrete batching plants and sand aggregate production lines, realizing closed and dust-free conveying.
Mining Industry
Applied in mining industry to convey crushed ore, coal powder and other materials, adapting to harsh working environment and ensuring stable conveying efficiency.
Chemical, Food & Grain Industry
Suitable for conveying granular materials such as grains, feed and chemical raw materials in chemical, food and grain industries, avoiding material pollution and mixing.
Environmental Protection & Sewage Treatment
Used in environmental protection and sewage treatment fields to convey sludge, activated carbon and other materials, with good sealing performance to prevent secondary pollution.
Building Materials Industry
Applied in building materials industry to convey raw materials such as gypsum powder, lime powder and cement clinker, matching the automatic production line to realize continuous feeding and conveying.
Advantages：
Environmental Protection & Dust-proof
The fully sealed structure effectively prevents dust leakage, avoids material pollution, and meets environmental protection production requirements.
Stable & Low Noise
Runs stably with low noise and low failure rate, ensuring continuous and reliable operation.
Low Maintenance Cost
Simple structure, easy installation and low failure rate, greatly reducing later maintenance costs.
Strong Adaptability
Supports multi-angle conveying, suitable for various installation environments and closed conveying scenarios.
Long Service Life
The equipment is durable, with strong practicality and long service life, bringing long-term value.
FAQ
Q: What materials can this screw conveyor transport?
A: It is suitable for powdery and granular materials such as cement, fly ash, mineral powder, lime powder, and grain. It is widely used in concrete mixing plants, building material factories, grain processing plants, and other similar applications.
Q: Can the conveying length and pipe diameter be customized?
A: Customization is supported. We can customize different lengths (2-12 meters), pipe diameters (219/273/325mm), and conveying angles according to your site conditions to meet the needs of different locations.
Q: Is there a lot of dust during the conveying process?
A: The equipment adopts a fully enclosed tubular structure, eliminating dust spillage during the conveying process. This is both environmentally friendly and prevents materials from becoming damp and contaminated, making it ideal for environments with strict environmental requirements.
Minimum order quantity ：
1 set
Service Assurance ：
Professional Installation & Commissioning Guidance
We provide dedicated guidance for screw conveyor layout, angle installation, shaft alignment and motor debugging. Step-by-step instructions ensure correct assembly and stable material conveying performance.
Abundant Spare Parts Supply
Ready stock for screw blade, hanging bearing, end bearing, reducer, sealing ring and coupling. Original matched parts can be shipped quickly to minimize your production stop time.
24/7 Remote Technical Support
Our engineering team provides round-the-clock online support for conveyor blockage troubleshooting, speed adjustment, vibration solving and daily operation optimization.
Operation & Maintenance Guidance
Supply official operation manual and maintenance tips for screw conveyor daily lubrication, cleaning, blade wear inspection and regular overhaul, extending equipment service life.
