Twin Shaft Concrete Mixer JS Series | High Efficiency Concrete Mixing Equipment
Efficient & Uniform Mixing Performance
Adopts the forced stirring principle, which can fully mix cement, aggregate, water and other raw materials, ensuring uniform mixing quality. It can stably mix various grades of concrete and meet the high-standard requirements of different engineering scenarios.
Strong Adaptability to Scenarios
Flexibly adapts to various application scenarios, including concrete batching plant, construction site, precast component factory, etc. It can cope with space constraints and small-batch/large-scale mixing needs, and perfectly matches the production rhythm of concrete batching plant.
Flexible & Convenient Operation
Simple operation, easy to master, and can be flexibly adjusted according to the mixing amount and engineering requirements. It is easy to maintain, and the key components are wear-resistant, ensuring long-term stable operation.
Stable & Reliable Operation
The structure is sturdy, adopts high-quality wear-resistant materials, has strong impact resistance, and can realize large-scale continuous production without frequent failure, providing stable support for the operation of concrete batching plant.
- Overview
- Specifications and Parameters
- Application Scenarios
- FAQ
- Recommended Products
Product Overview

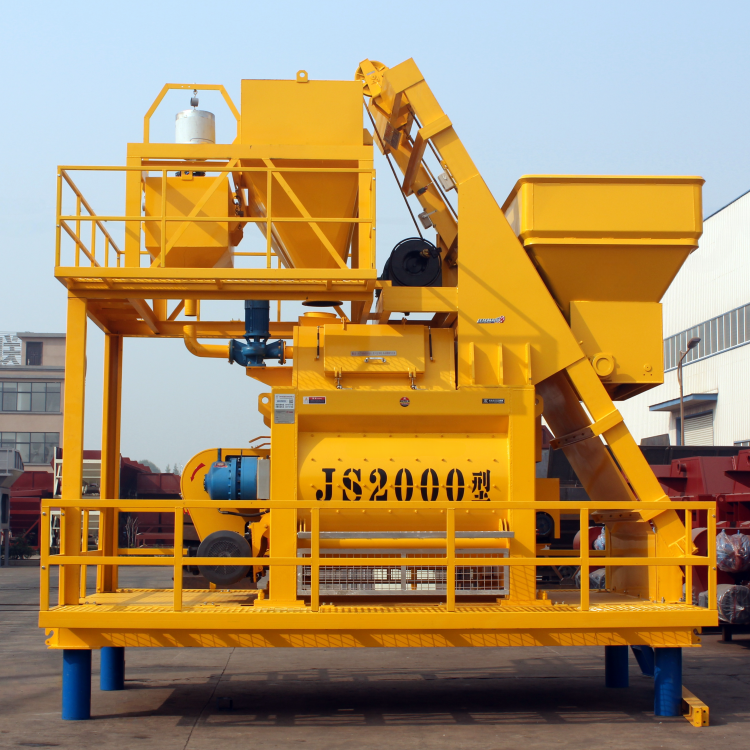

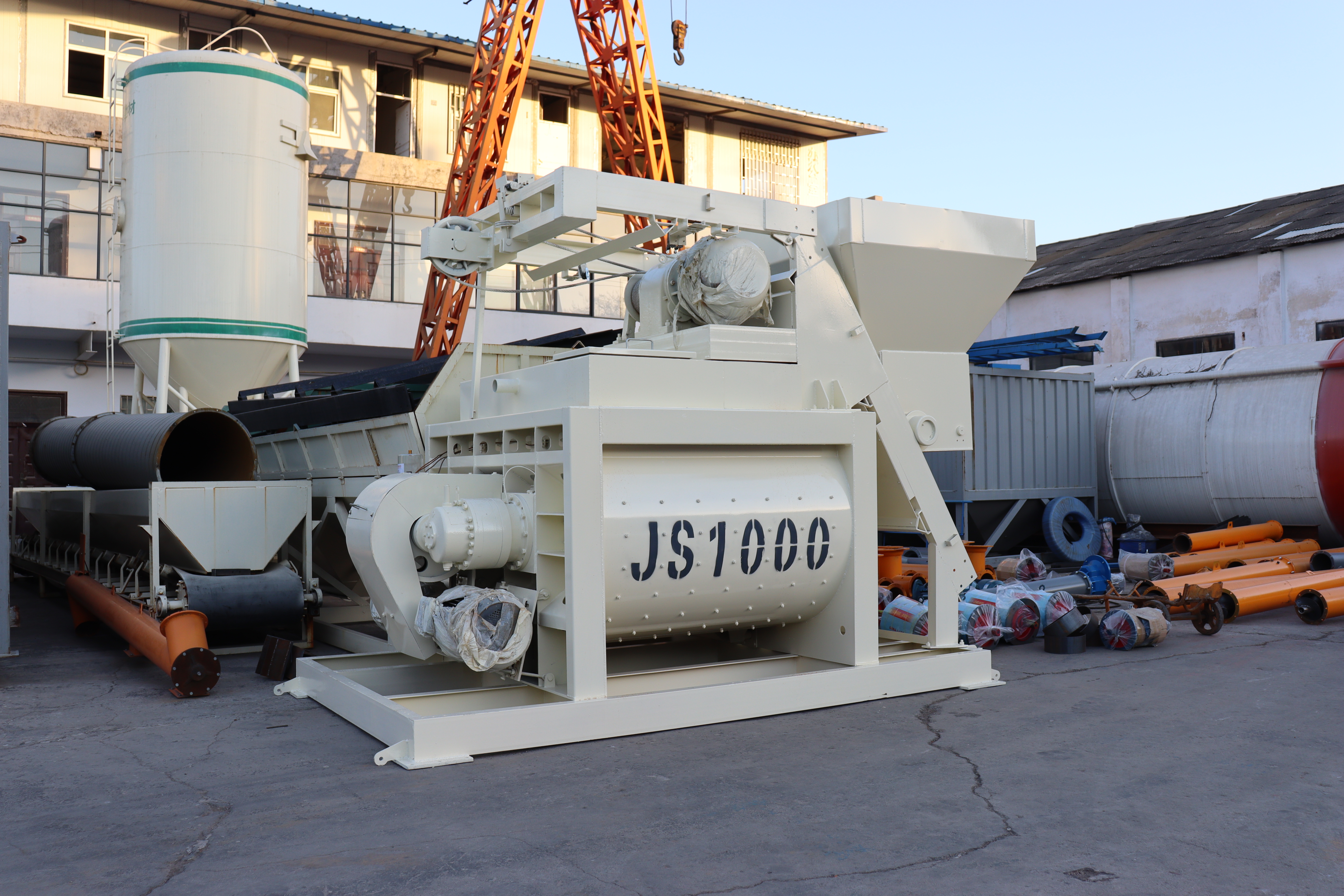

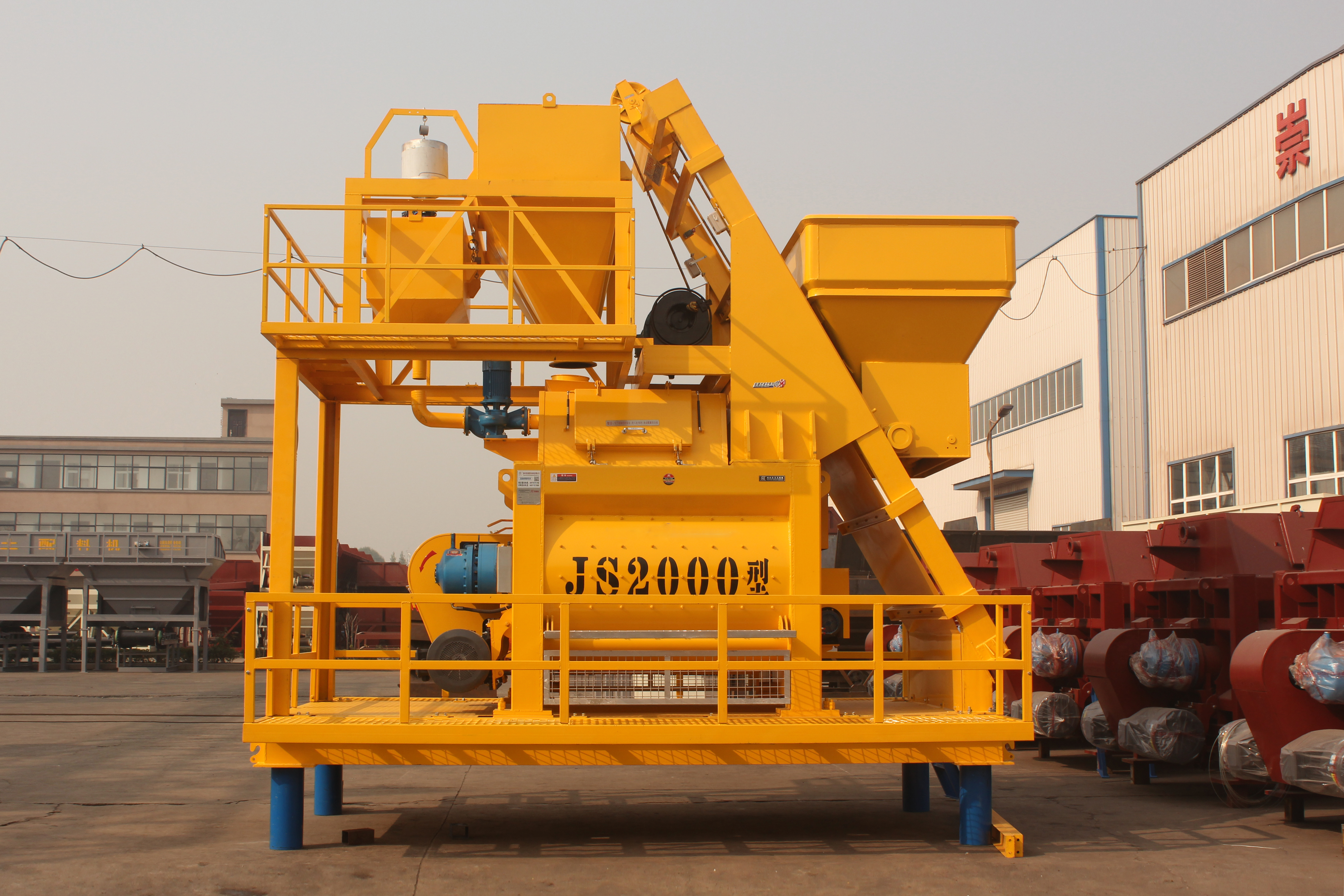

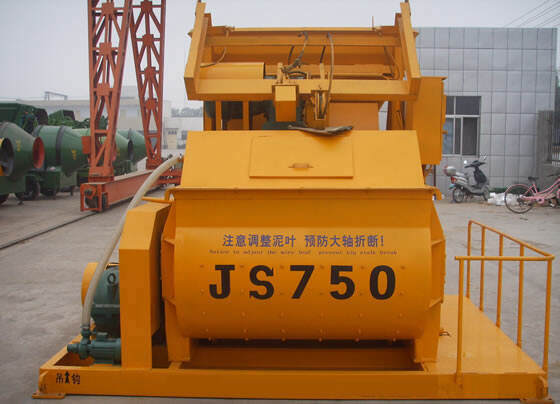

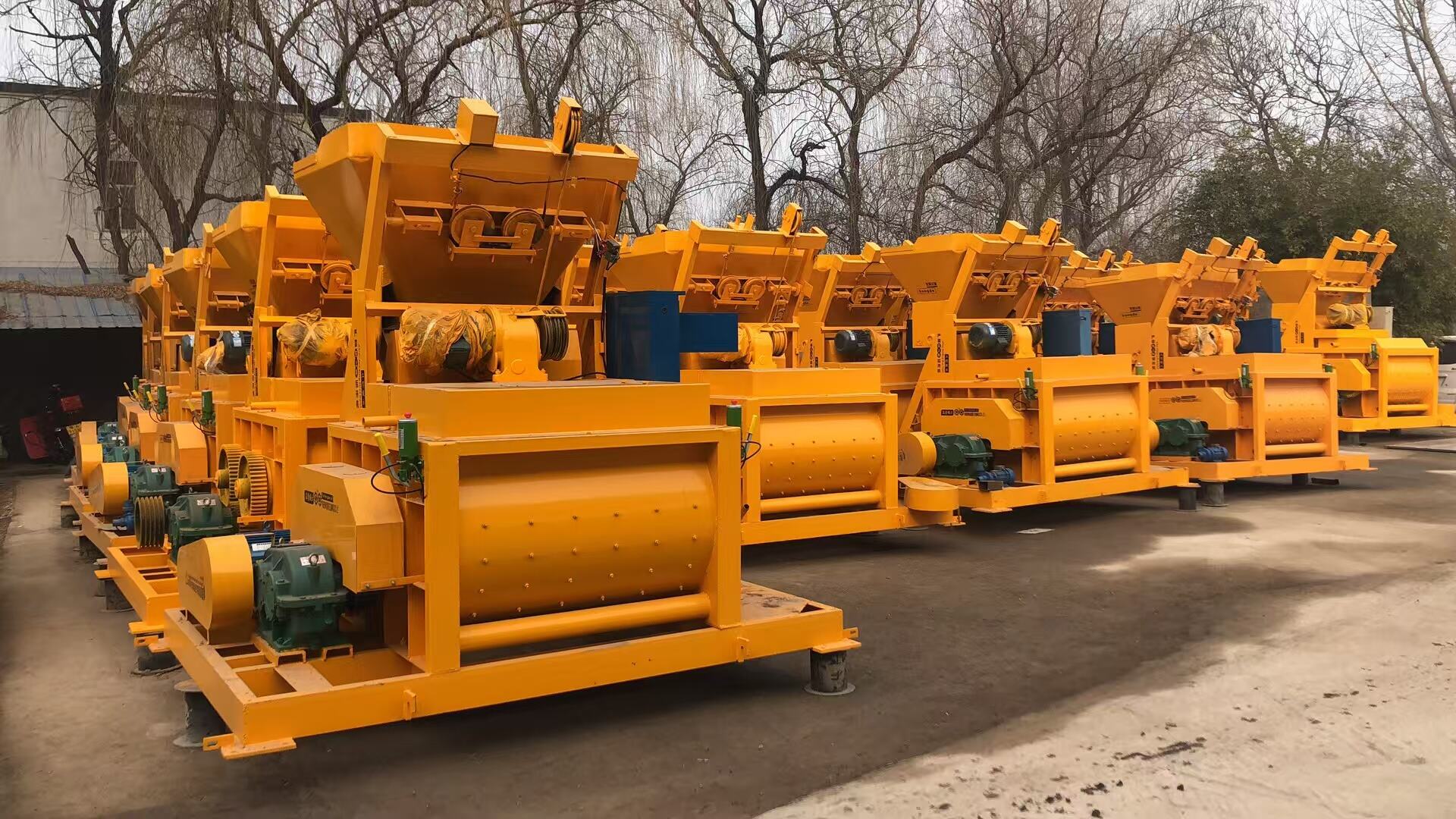

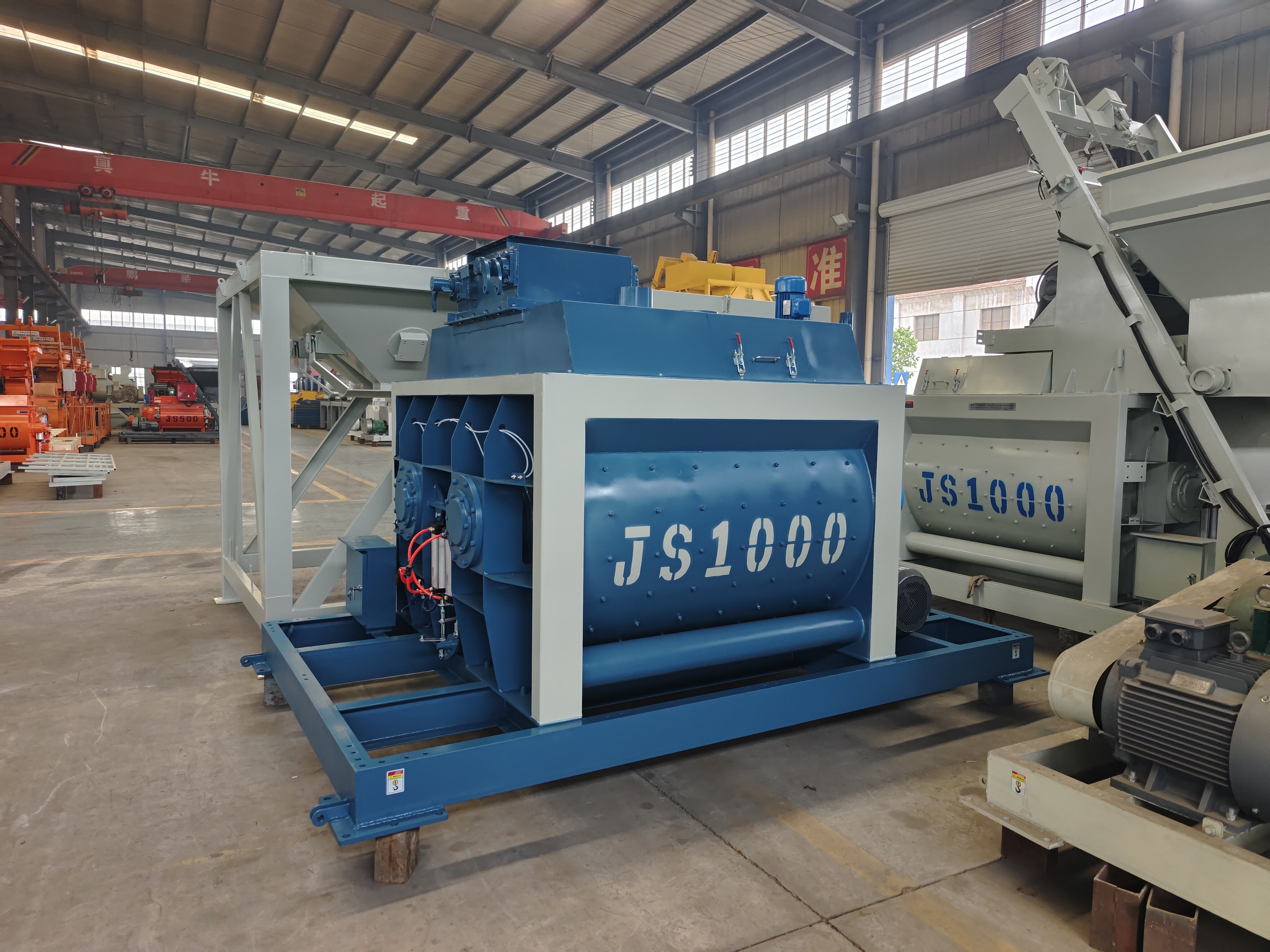

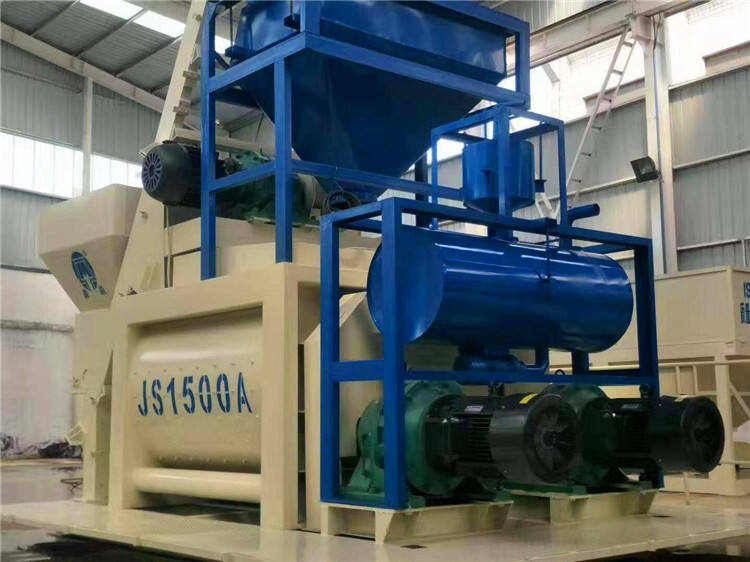

The Forced Mixer is a high-efficiency, high-performance mixing equipment specially designed for concrete mixing, widely used in concrete mixing stations, construction sites, precast factories and other scenarios. It adopts a forced stirring principle, which can fully mix various raw materials such as cement, aggregate, sand and water, ensuring uniform mixing quality and meeting the requirements of high-standard concrete production.
Constructed with high-strength wear-resistant steel plates and optimized structural design, the mixer has strong impact resistance and wear resistance. Its robust stirring shaft and high-quality stirring blades are designed for long-term continuous operation, effectively improving the service life and reducing maintenance frequency.
The mixer features a compact layout, small floor occupation and convenient installation and maintenance. It is compatible with various types of concrete mixing stations, and can be customized according to different production needs, providing a reliable, efficient and stable mixing solution for modern concrete engineering.
Specifications and Parameters
|
Model |
JS500 |
JS750 |
JS1000 |
JS1500 |
JS2000 |
JS3000 |
|
Discharging Capacity |
500L |
750L |
1000L |
1500L |
2000L |
3000L |
|
Charging Capacity |
800L |
1200L |
1600L |
2400L |
3200L |
4800L |
|
Productivity |
≥25m³/h |
≥37.5m³/h |
≥50m³/h |
≥75m³/h |
≥100m³/h |
≥150m³/h |
|
Blade Rotate Speed |
35r/min |
31r/min |
25.5r/min |
25.5r/min |
23r/min |
21r/min |
|
Blade Quantity |
2×7 |
2×7 |
2×7 |
2×8 |
2×9 |
2×10 |
|
Main Motor Power |
18.5kw |
30kw |
37kw |
30kw×2 |
37kw×2 |
55kw×2 |
Application Scenarios
Concrete Batching Plants
As the core mixing equipment of concrete Batching Plants (both stationary and mobile), it is suitable for large-scale, continuous concrete production. It can stably mix various grades of concrete, matching the production rhythm of batching and conveying systems, ensuring efficient and uniform output.
Construction Sites
Ideal for on-site concrete mixing in building construction, road and bridge engineering, and municipal construction. It can flexibly adapt to on-site space constraints, mix concrete on demand, and meet the real-time needs of different construction links such as foundation pouring and structural construction.
Precast Component Factories
Perfect for precast concrete component production, such as precast beams, slabs, columns and pipes. It ensures uniform mixing quality and stable performance, meeting the high-standard requirements of precast components for concrete strength and compactness.
Small-Scale & Special Engineering
Applicable to small-scale construction projects, rural construction, and special concrete mixing (such as lightweight aggregate concrete, fiber concrete). It features flexible operation, easy movement and simple maintenance, adapting to diverse and small-batch mixing needs.
Advantages：
Superior Mixing Quality
Compared with ordinary mixing equipment, it adopts forced stirring mode, which can achieve more uniform mixing, effectively avoid uneven mixing, and ensure the strength and quality of concrete, which is more in line with the production requirements of concrete batching plant.
Strong Scenario Versatility
It is not only suitable for the matching use of concrete batching plant, but also can be used independently in small-scale construction, precast component production and other scenarios, with wider application scope than ordinary mixing equipment.
High Cost-Effectiveness
It integrates efficient mixing and convenient maintenance, with low later operation cost. It can be perfectly matched with the production rhythm of concrete batching plant, reducing the overall operation cost of the project.
FAQ
Q: What type of concrete can this mixer handle?
A: It is suitable for plastic, dry, and lightweight concrete.
Q: What is the difference between JS mixer and planetary mixer?
A: JS mixer is ideal for large-scale and fast mixing, while planetary mixers are used for high-end precision mixing.
Q: Can it be used in a batching plant?
A: Yes, it is commonly used as the main mixer in concrete batching plants.
Q: Do you provide installation service?
A: Yes, we offer remote guidance or on-site installation support.
Q: How to choose the right model?
A: Please contact us with your capacity requirements, and we will recommend the best mode.
Minimum order quantity ：
1 set
Service Assurance ：
Installation & Commissioning Support
We provide professional on-site installation and commissioning guidance for the forced mixer. Our technical team will help complete the installation, debug the equipment, and ensure it achieves efficient mixing and stable operation, matching the production rhythm of batching and conveying systems.
Wear Parts Supply
We keep sufficient stock of core wear parts (such as mixing blades, seals, control modules) for the forced mixer. When parts are worn or damaged, we can quickly deliver original parts to minimize downtime and ensure the continuous operation of the mixer.
Technical & Operational Support
We provide lifelong free technical consultation. For any problems during use (such as uneven mixing, operation confusion, or equipment failure), our professional team will respond within 2 hours and provide remote guidance or on-site maintenance services to solve problems in a timely manner.
Customization & Follow-Up Service
If you have special requirements for the mixer (such as adjusting mixing efficiency, adapting to special engineering scenarios), we provide personalized customization services. After the warranty period, we still offer preferential maintenance and parts supply to ensure long-term stable use of the equipment.
Contact Us
If you need any consultation about concrete mixer model selection, technical parameters, price quotation, equipment matching and customized solutions, please get in touch with us. We will recommend the most suitable mixer according to your project scale and production demands.
Email: [email protected]
Phone: +86 18037875588
We support personalized customization and bulk order cooperation. Whether you equip it for concrete batching plant, construction sites or precast component factories, we supply cost-effective concrete mixers and perfect one-stop service for global customers.
